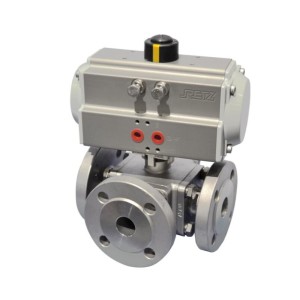

(L型，T型)進口氣動三通球閥用于換向分流或匯合流通，是具有二面或四面閥座的多通口球閥，任一通口可用作入口而無泄漏。三通既可制成L型通口也可制成T型通口

(L-type, T-type) imported pneumatic flange three-way ball valve is used for directional flow diversion or confluence flow. It is a multi port ball valve with two or four sided seats, and any port can be used as an inlet without leakage. Tees can be made into both L-shaped and T-shaped ports

進口氣動三通球閥產品詳情 Product details

(L型，T型)氣動三通球閥是一種三通道的回轉型球閥,閥芯有L型和T型，根據不同的工況，任何一個管道都可以作為入口進口氣動法蘭三通球閥2.jpg或出口。L型閥是對三條管道中的兩條管道進行切除，T型閥實現把三條連通管道進行合流與分流 RETZ (L type, T type) The inlet pneumatic flange three-way ball valve is a three-way rotary ball valve. The valve cores are L type and T type. According to different working conditions, any pipe can be used as the inlet or outlet. L valve is used to cut two of the three pipes, while T valve is used to combine and separate the three connected pipes

進口氣動三通球閥性能參數 Performance description

進口氣動三通球閥執行器參數 Actuator parameters

采用雙作用式和單作用式（彈簧復位）氣動執行器，齒輪齒條傳動，安全可靠；大口徑閥門采用系列AW型氣動執行器拔叉式傳動，結構合理，輸出扭矩大 Double acting and single acting (spring return) pneumatic actuators are used for rack and pinion transmission, which is safe and reliable; The large diameter valve adopts series AW pneumatic actuator fork type transmission, with reasonable structure and large output torque

1、齒輪式雙活塞，輸出力矩大，體積小 Gear type double piston, large output torque, small volume

2、可在頂部、底部安裝手動操作機構 Manual operating mechanism can be installed at the top and bottom

3、齒條式連接可調節開啟角度、額定流量 Rack type connection can adjust opening angle and rated flow

4、執行器可選帶電訊號反饋指示及各類附件以實現自動化操作 The actuator can select live signal feedback indication and various accessories to realize automatic operation

5、IS05211標準連接為產品的安裝更換提供了方便 IS05211 standard connection provides convenience for product installation and replacement

6、兩端調的節螺釘可使標準產品在0°和90°有±4°的可調范圍。確保與閥門的同步精度 The adjustable pitch screws at both ends can make the standard products have an adjustable range of ± 4 ° at 0 ° and 90 °. Ensure synchronization accuracy with the valve
