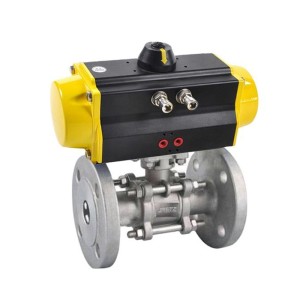

(耐磨，耐酸堿)進口氣動陶瓷球閥核心部件閥芯與閥座采用氧化鋁陶瓷或碳化硅陶瓷，經平面磨、外圓磨、快速球磨、球面對研等工序精密加工，閥芯與幾乎完全貼合的閥座相對旋轉實現啟閉，輕扭矩得以精妙展現(Wear resistant, acid and alkali resistant) The core components of the imported pneumatic ceramic ball valve, the valve core and valve seat, are made of aluminum oxide ceramics or silicon carbide ceramics. After precision processing of surface grinding, cylindrical grinding, rapid ball grinding, ball surface grinding and other processes, the valve core and the almost completely fitted valve seat rotate relatively to realize opening and closing, and the light torque is subtly displayed
進口氣動陶瓷球閥產品詳情 Product details
(球及閥座原料采用剛玉陶瓷（成分為Al，O≥95%）或碳化硅 The material of ball and valve seat is Corundum Ceramic(Main content Al,O.≥95%)or Silicon Carbide
陶瓷經1680℃以上超高溫燒結而成，硬度高達HRA85° Ceramic is fritted at 1680℃, hardness is up to HRA85°
毛坯經過精密的研磨成型，研磨后的球度為0.005mm Semifinished product is grinded precisely. The sphericity after grinding is 5um
閥芯球體與球座配合研磨，輕扭矩與硬密封完美結合 The ceramic ball and seat are grinded in pair which makes it have the advantage of low torque and good hard sealing
閥體通過CNC機床精密加工，與陶瓷球芯準確配合 The valve body is precisely processed by CNC machine tool, and accurately matched with the ceramic ball core
產品嚴格通過嚴格的氣壓密封測試和水壓密封測試 of the products have passed the strict air pressure seal test and water pressure seal test
進口氣動陶瓷球閥技術參數
|
公稱通徑 DN(mm) |
3/4-4” 縮徑球閥(14.5-76mm) |
|
結構 |
浮動球直通(硬密封球閥)，球芯：氧化鋁陶瓷芯，碳化硅閥芯 |
|
公稱壓力 |
0-16Bar |
|
連接形式 |
法蘭式 |
|
閥體材質 |
316L不銹鋼 |
|
閥桿材料 |
默認316L ,可選(哈式合金鋼B或哈式C) |
|
工作溫度 |
0- 120°C,選擇(三元乙丙橡膠：EPDM),0-200°C,選擇(氟橡膠密封：FKM) |
|
動作范圍 |
0～90° |
|
泄露量Q |
按GB/T4213-92，小于額定KV0.01% |
|
基本誤差 |
帶定位器：小于全行程的±2% |
|
可調范圍 |
250：1 |
|
配置執行機構 |
AT系列單雙作用氣動執行器 |
|
控制方式 |
開關兩位控制能、4～20mA模擬量信號控制 |
